LV-67C - Mini-ITX Core i7/i5/i3 Q57 SBC |
|
 |
Overview

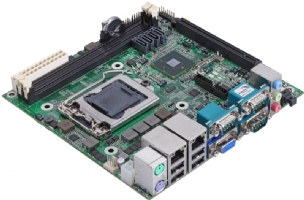

Commell's latest Mini-ITX motherboard, the LV-67C, is ideal for developing high-performance systems for industrial control and automation, retail, gaming, print imaging and digital signage. It combines the latest multi-core CPUs with the requirements of the embedded system designer.
Key Features
CPU: Intel Core i7/i5/i3/Pentium desktop in LGA1156 socket.
Memory: Two DDR3 1066/1333MT/s DIMM up to 8GB.
Chipset: Intel® BD82Q57 PCH.
Display Interface: Intel® 32nm Core™ i5/i3 integrated HD Graphics Technology, VGA and DVI output interface.
LAN Interface: 2 x Intel® 82574L Giga LAN.
Serial ATA: Support four SATAII up to 300MB/s with RAID 0,1,5,10.
Audio: Intel® Q57 integrated with Realtek ALC888 High Definition Audio.
I/O ports: 3 x RS232 and 1 x RS232/422/485 Serial Ports, 8 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports.
Extended interface: One x16 PCIe, 1 x Mini-PCIe & 1 x Mini-PCI socket.
GPIO interface: Onboard programmable 8-bit Digital I/O interface.
WatchDog Timer: 256-level generates NMI or system reset programmable watchdog timer.
Specifications
Form Factor: Mini-ITX Motherboard.
Processor: Intel® Core™ i7/i5/i3/Pentium® Desktop processor.
Package Type: FCLGA1156.
Bus Speed: 2.5GT/s DMI.
Memory: 2 x 240-pin DDR3 1066/1333MT/s DIMM up to 8GB (ECC memory support depends on CPU).
Chipset: Intel® BD82Q57 PCH (Platform Controller Hub).
Real Time Clock: Chipset integrated RTC with onboard lithium battery.
Watchdog Timer: Generates a system reset with internal timer for 1min/s ~ 255min/s.
Power Management: ACPI 1.0 compliant, supports power saving mode.
Serial ATA Interface: Intel® Q57 PCH built-in 4 x Serial ATA II interface up to 300MB/s, supports RAID 0, 1, 5, 10 and Intel® Rapid Storage Technology.
VGA Interface: Intel® Core™ integrated HD Graphics Technology.
Video Memory: Up to 1.7GB shared with system memory.
Audio Interface: Intel® integrated Q57 with Realtek ALC888 HD Audio.
LAN Interface: 2 x Intel® 82574L Gigabit Ethernet Controller.
GPIO Interface: Onboard programmable 8-bit digital I/O interface.
Expansion Interfaces: One x16 PCIe, 1 x Mini-PCIe, 1 x Mini-PCI. Internal I/O Ports: 1 x RS232/422/485, 1 x GPIO, 1 x CDIN, 1 x SMBus, 1 x Audio, 1 x IrDA, 4 x USB2.0. External I/O Ports: 1 x PS/2 keyboard/mouse, 2 x RJ45, 1 x VGA, 4 x USB2.0, 1 x Audio, 3 x RS232.
External Audio: Line-in, MIC-in, Front, Rear, Center/Subwoofer and optical SPDIF.
Power Requirements: Standard 24-pin ATX power supply and P4 4-pin 12V (20-pin ATX compatible).
Board Dimensions: 170mm x 170 mm (L x W).
Temperature: Operating 0 ~ 60°C, Storage -20 ~ 85°C.
|
