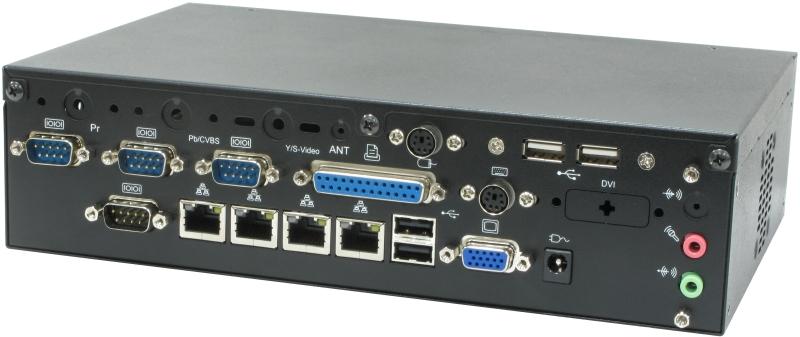

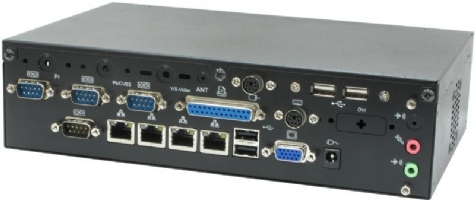

CMB-575 - Compact Intel Atom System with four Gigabit Ethernet ports |
|
 |
The CMB-575 is a compact 5.25" drive-size embedded multiple Ethernet platform based on the Intel Atom N270. The board provides 4 x Intel 82574L Gigabit Ethernet interfaces for industrial multiple Ethernet applications such as firewall, mainstream IDS/IPS, Anti-virus, VPN gateway and UTM applications.
Motherboard Options
LE-575X : Intel Atom 5.25" SBC with VGA, HDTV, LAN, SATA, USB, Audio, RS232/422/485, Mini-PCI, PCI, CompactFlash, 18-bit LVDS.

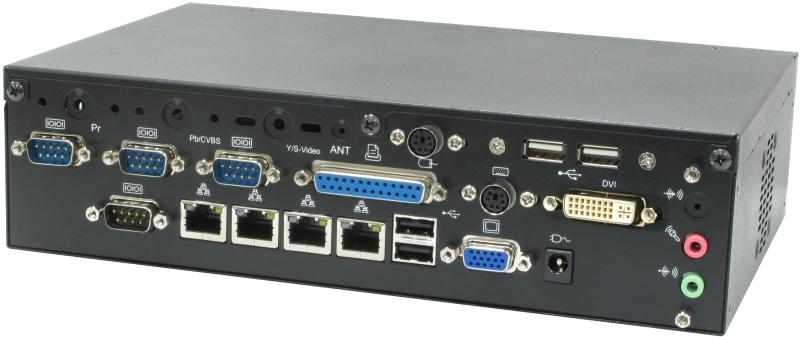

LE-575XD : The same as LE-575X but with the addition of DVI.
Specifications
Form Factor: 5.25" Barebone
Construction: Heavy-duty Steel
Drive Bay: 1 x 2.5" HDD Space
Riser card: No
Thermal Control: 1 x System Fan
Front Panel: Power On/Off , reset and HDD activity LED
Rear I/O: 4 x RJ45 LAN, 1 x DC input, 4 x COM, 4 x USB, 1 x VGA, 1 x LPT, 1 x KB/MSE, Line-In/Mic-In, 1 x Antenna, 1 x DVI (optional)
Environment: Operating Temperature: 0 ~ 40°C
Power supply: DC 9~24V input
Dimensions: 250x65x160mm (WxHxD)
Weight: approx. 1.75Kg, (excluding HDD)
|
