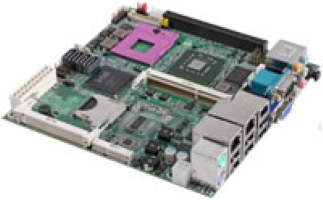

LV-67B - Mini-ITX Core 2 Duo Mobile GM45 SBC |
 |
 |
The LV-67B is a Mini-ITX SBC incorporating an Intel Socket P compatible with Intel Core 2 Duo Mobile Penryn or Core 2 Extreme processors @ FSB 667/800/1066MHz. It supports T8100, T8300, T9300, T9400, T9500, X9100, X9000 & Mobile Celeron 578, 575 processors which are validated with the Mobile GM45 Express chipset. It provides excellent flexibility for developers of embedded applications by offering outstanding graphics, memory and I/O bandwidth, asset management capabilities, storage speed and reliability. It is therefore ideal for applications such as interactive clients, gaming platforms and industrial automation equipment.
The LV-67B Mini-ITX SBC offers the integrated Mobile Intel Graphics Accelerator 4500MHD, Intel Clear Video Technology, and graphics core speeds up to 533MHz. This enables high-definition video playback, and offers support for numerous displays, including VGA, LVDS and HDTV.
The LV-67B Mini-ITX SBC supports SO-DIMM DDR3 SDRAM up to 8GB, and comes with PS/2 Keyboard and Mouse, 1 x RS232C and 1 x RS232/422/485. Networking is provided by two Intel 82573L Giga LAN, 10 x USB2.0 ports and IEEE1394. It offers Realtek ALC888 HD audio, 4 x SATA interface, and expansion with one Mini-PCI, one PCIe x 16 and one PCI express Mini card slot.
Specifications
Form Factor: Mini-ITXexpress Motherboard (170 x 170mm)
CPU: Intel Core 2 Duo with Socket P @ 667/800/1066MHz FSB
Memory: 2 x DDR3 SO-DIMM 800/1066MHz up to 8GB
Chipset: Intel GM45 & ICH9M
Real Time Clock: Chipset integrated RTC with onboard lithium battery
Watchdog Timer: Generates a system reset internal timer for 1sec/min ~ 255 sec/min
Power Management: ACPI 2.0 compliant, supports power saving mode
VGA Interface: Intel GM45 integrated GMA X4500 Technology
LVDS Interface: 24-bit dual channel LVDS interface
Serial ATA Interface: 4 x Serial ATA II Interface with 300 MB/s transfer rate
Audio Interface: Realtek ALC888 HD Audio
LAN Interface: 2 x Intel 82573L Gigabit Ethernet
GPIO Interface: Onboard programmable 8-bit digital I/O interface
Expansion Slots: PCI-Express X16, Mini-PCI and PCI Express Mini card
External I/O Ports: 2 x RJ45 LAN ports, 1 x DB15 VGA port, 1 x PS/2 Keyboard/Mouse ports, 1 x IEEE 1394 ports, 6 x USB 2.0 ports, Audio, SPDIF, 1 x COM
Internal I/O Ports: 1 x RS232/422/485, 1 x SMBUS, 1 x IrDA , 4 x USB 2.0, 1 x 8-bit GPIO, 1 x Audio, 1 x CDIN, LVDS and LCD inverter connector, 1 x HDTV
Power Requirements: Standard 20-pin ATX power supply or 9V ~ 24V full range DC input (PCIE graphics card not supported in DC input mode)
Board Dimensions: 170mm x 170 mm (L x W)
Operating Temperature: 0 ~ 60ºC
|
| Form Factor | Mini-ITXexpress Motherboard (170 x 170mm) |
| Serial ATA Interface | 4 x Serial ATA II Interface with 300 MB/s transfer rate |
| Audio Interface | Realtek ALC888 HD Audio |
| LAN Interface | 2 x Intel 82573L Gigabit Ethernet |
| GPIO Interface | Onboard programmable 8-bit digital I/O interface |
| Expansion Slots | PCI-Express X16, Mini-PCI and PCI Express Mini card |
| External I/O Ports | 2 x RJ45 LAN ports, 1 x DB15 VGA port, 1 x PS/2 Keyboard/Mouse ports, 1 x IEEE 1394 ports, 6 x USB 2.0 ports, Audio, SPDIF, 1 x COM |
| Internal I/O Ports | 1 x RS232/422/485, 1 x SMBUS, 1 x IrDA , 4 x USB 2.0, 1 x 8-bit GPIO, 1 x Audio, 1 x CDIN, LVDS and LCD inverter connector, 1 x HDTV |
| Power Requirements | Standard 20-pin ATX power supply or 9V ~ 24V full range DC input (PCIE graphics card not supported in DC input mode) |
| Board Dimensions | 170mm x 170 mm (L x W) |
| Operating Temperature | 0 ~ 60ºC |
| CPU | Intel Core 2 Duo with Socket P @ 667/800/1066MHz FSB |
| Memory | 2 x DDR3 SO-DIMM 800/1066MHz up to 8GB |
| Chipset | Intel GM45 & ICH9M |
| Real Time Clock | Chipset integrated RTC with onboard lithium battery |
| Watchdog Timer | Generates a system reset internal timer for 1sec/min ~ 255 sec/min |
| Power Management | ACPI 2.0 compliant, supports power saving mode |
| VGA Interface | Intel GM45 integrated GMA X4500 Technology |
| LVDS Interface | 24-bit dual channel LVDS interface |
|
