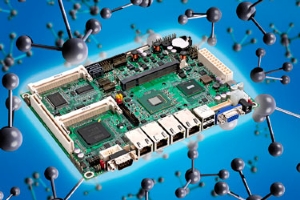

BVM’s new 5.25” form factor fanless SBC, the LE-575, is based on the Intel 945GSE chipset and supports the low-power N270 Atom processor, running at 1.6GHz with a 533MHz FSB. The board is optimised for embedded market applications such as digital signage, kiosks, POS, thin clients, digital security, and commercial and industrial control. Fitted with four GigaLAN ports, the unit will also perform well in mainstream IDS/IPS, Anti-virus, VPN gateway and UTM applications.
Up to 2GB DDR2 memory is supported and 2 x USB 2.0 ports, 4 x GigaLAN, 2 x mini-PCI, 2 x 150MB/s SATA interfaces and 1 x PCI ports are onboard. An 18-bit LVDS dual channel connector, an optional onboard DVI interface, integrated audio and a GMA 950 VGA interface addressing up to 244MB and supporting HDTV are all provided. IDE Solid State Disk and a Type II CompactFlash socket complete an impressive array of peripheral interfaces.
Integrated power management, an 8-bit GPIO interface, RTC and watchdog timer are provided, and the board is powered from a standard 24-pin external 80W ATX PSU, or DC via either a DC jack or a standard 4-pin power connector. |
